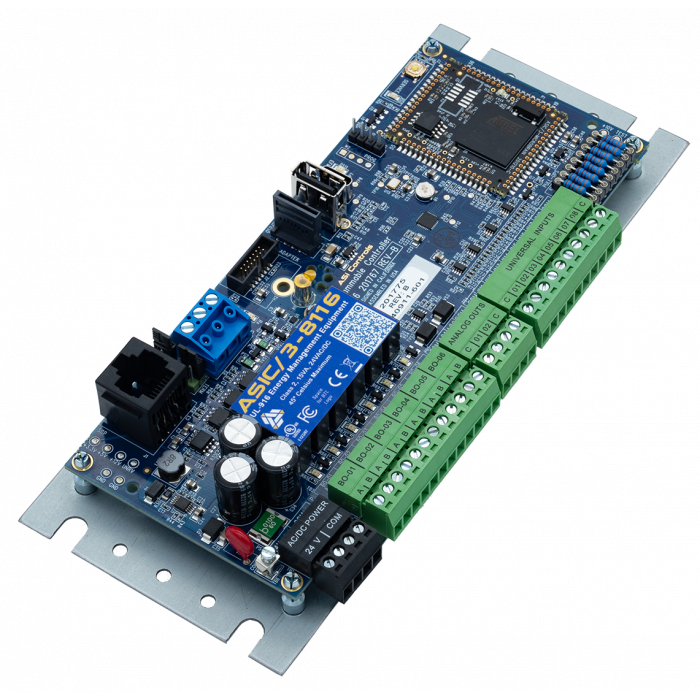

[3-8116] supervisory controller, 16 I/O (BTL-BBC)
Login to see Pricing
In stock
SKU
3-8116
6 Form "A" relay outputs, 2 Analog outputs (0-10 Vdc, 0-5 Vdc, or 4-20 mA), 8 Universal Inputs (0-10 Vdc, 0-5 Vdc, or 4-20 mA), 32-bit CPU, battery-backed calendar clock, RS485 port, supports BACnet MS/TP or optional ASI Legacy Protocol. 1xUSB-C service port. Screw Terminals. BACnet BTL-BBC certified
ASIC/3-8116 programmable controller with 16 total I/O points. 8 universal inputs (0-10 Vdc, 0-5 Vdc or 4-20 mA), 6 Form A relay and 2 Analog outputs (0-10 Vdc).
Downloadable Resources: Technical Datasheet
